Advanced Safety Net Production Machine
HDPE Building Construction Raschel Machine featuring Block Latch Needle or Single Latch Needle System
Our Services
All products supplied by our company are covered by a one-year warranty with lifetime technical support to ensure long-term stable operation.
- Free technical training for customer staff at our factory
- Regular follow-ups and inspections by dedicated personnel
- Maintenance reminders and ongoing support
Specifications
Technical Parameters
| Needle Type |
Block latch needle or individual latch needle |
| Gauge |
E2, E6, E7, E8, E9, E12 |
| Bar Number |
2~6 |
| Nominal Width |
135", 150", 170", 220", 240", 260" |
| Take-up Manner |
2 rollers with friction drive, center shaft drive; 2 rollers with friction drive, separately-standing, center shaft drive, separately-standing |
Machine Models & Performance
| Main Type |
Machine Size |
Speed (rpm) |
Main Motor Power |
Inching Motor Power |
| SRCA-135 |
4300*1700*2300 |
200-530 |
3kw |
0.37kw |
| SRCA-150 |
4900*1700*2300 |
200-530 |
3kw |
0.37kw |
| SRCA-170 |
6100*1700*2400 |
200-530 |
5.5kw |
0.75kw |
| SRCA-220 |
7300*1700*2400 |
200-500 |
5.5kw |
1.5kw |
| SRCA-240 |
8200*1700*2400 |
200-480 |
7.5kw |
1.5kw |
| SRCA-260 |
10300*1700*2400 |
200-450 |
11kw |
1.5kw |
Usage & Features

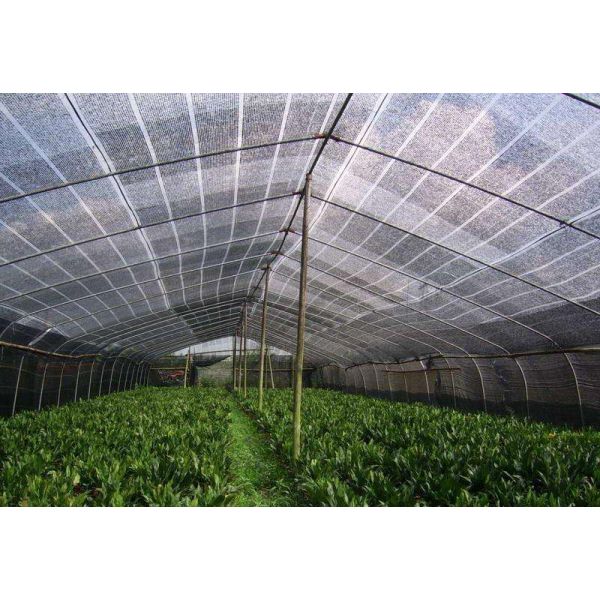

Usage: This machine is used to produce safety nets, shading nets, purse nets, and breeding nets.
Features: Equipped with an oil-bath eccentric gear system and a three-roller forward yarn break detection system.
Packaging & Shipping
Packaging Details: Standard wooden box packaging (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight containers or special customer requests.
Port: Shanghai
Production Process
Applications
Safety Nets: Engineering and construction nets, protective nets, fire-resistant nets, and more
Frequently Asked Questions
Q: Is the price changeable?
A: We offer reasonable pricing for all clients, with adjustments based on purchase quantity.
Q: How about the quality?
A: Professional assembly line work and strict quality testing systems ensure high-quality standards.
Q: How about the after-sale service?
A: We provide comprehensive after-sale overseas service with engineers available for international machinery support.
